LENGTH RANGE: 1500mm to 5000mm

LOADING CAPACITY: 9500kg to 3860kg

* Available with or without Edges

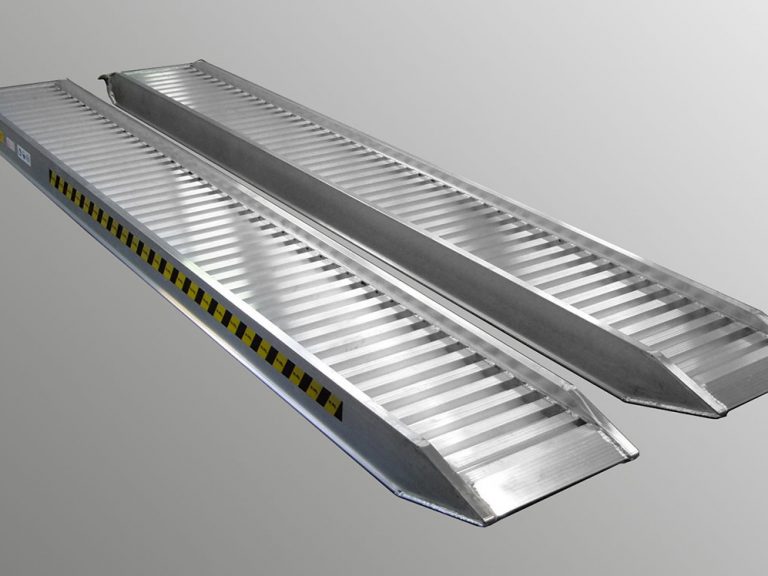

H175 Ramps Specification
CODE WITHOUT EDGESLOADING CAPACITY PAIR IN KG / WHEELBASE
1500 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
1750 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
2000 mm
LENGTH (mm)INTERNAL WIDTH (mm)EXTERNAL WIDTH (mm)WEIGHT Pair (kg)
H175/15S950095009500150040048072
H175/20S880092009400200040048077
H175/25S850087009000250040048084

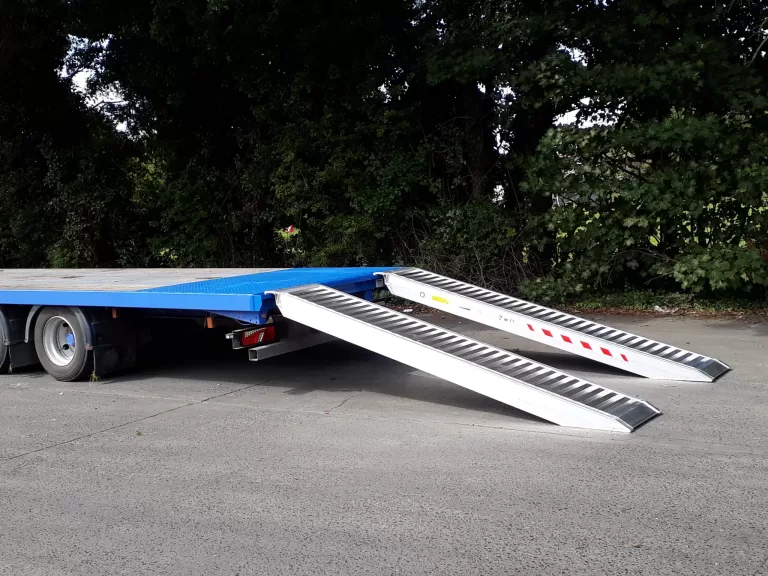

H175/30S800085008800300040048093

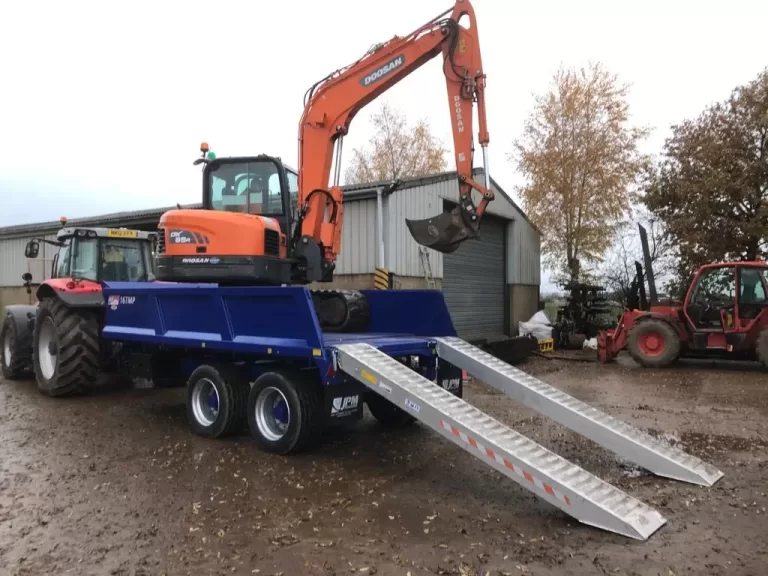

H175/35S6960795587193500400480107
H175/40S5520613569004000400480123
H175/45S4555497054654500400480137
H175/50S3860415545055000400480152
CODE WITHOUT EDGES WIDERLOADING CAPACITY PAIR IN KG / WHEELBASE
1500 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
1750 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
2000 mm
LENGTH (mm)INTERNAL WIDTH (mm)EXTERNAL WIDTH (mm)WEIGHT Pair (kg)
H175/15SL950095009500150050058082
H175/20SL880092009400200050058087
H175/25SL850087009000250050058094
H175/30SL8000850088003000500580103
H175/35SL6960795587193500500580117
H175/40SL5520613569004000500580134
H175/45SL4555497054654500500580150
H175/50SL3860415545055000500580167
CODE WITH EDGESLOADING CAPACITY PAIR IN KG / WHEELBASE
1500 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
1750 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
2000 mm
LENGTH (mm)INTERNAL WIDTH (mm)EXTERNAL WIDTH (mm)EDGES HEIGHTS (mm)WEIGHT Pair (kg)
H175/15B95009500950015004004803772
H175/20B88009200940020004004803777
H175/25B85008700900025004004803784
H175/30B80008500880030004004803793
H175/35B696079558719350040048037107
H175/40B552061356900400040048037123
H175/45B455549705465450040048037137
H175/50B386041554505500040048037152
CODE WITH EDGES WIDERLOADING CAPACITY PAIR IN KG / WHEELBASE
1500 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
1750 mm
LOADING CAPACITY PAIR IN KG / WHEELBASE
2000 mm
LENGTH (mm)INTERNAL WIDTH (mm)EXTERNAL WIDTH (mm)EDGES HEIGHTS (mm)WEIGHT Pair (kg)
H175/15BL95009500950015005005803782
H175/20BL88009200940020005005803787
H175/25BL85008700900025005005803794
H175/30BL800085008800300050058037103
H175/35BL696079558719350050058037117
H175/40BL552061356900400050058037134
H175/45BL455549705465450050058037150
H175/50BL386041554505500050058037167
